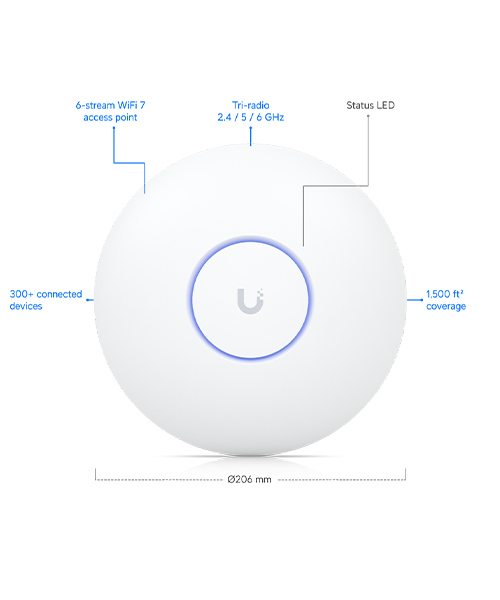

U7 Pro
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Description
Overview
Dimensions
Ø206 x 46 mm (Ø8.1 x 1.8″)
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Pro Mount Included)
Power Method
PoE+
Performance
MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
5.8 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
23 dBm
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
21W
Supported Voltage Range
44—57V DC
Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
680 g (1.5 lb)
Management
Ethernet
Enclosure Material
Polycarbonate, metal
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
Yes
Operating Frequency
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8 : 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5725 MHz 5925 – 7125 MHz
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 8.0.28 and later
